Miejsce pochodzenia:
Jiangsu, Chiny
Nazwa handlowa:
Giant Precision
Orzecznictwo:
ISO9001
Numer modelu:

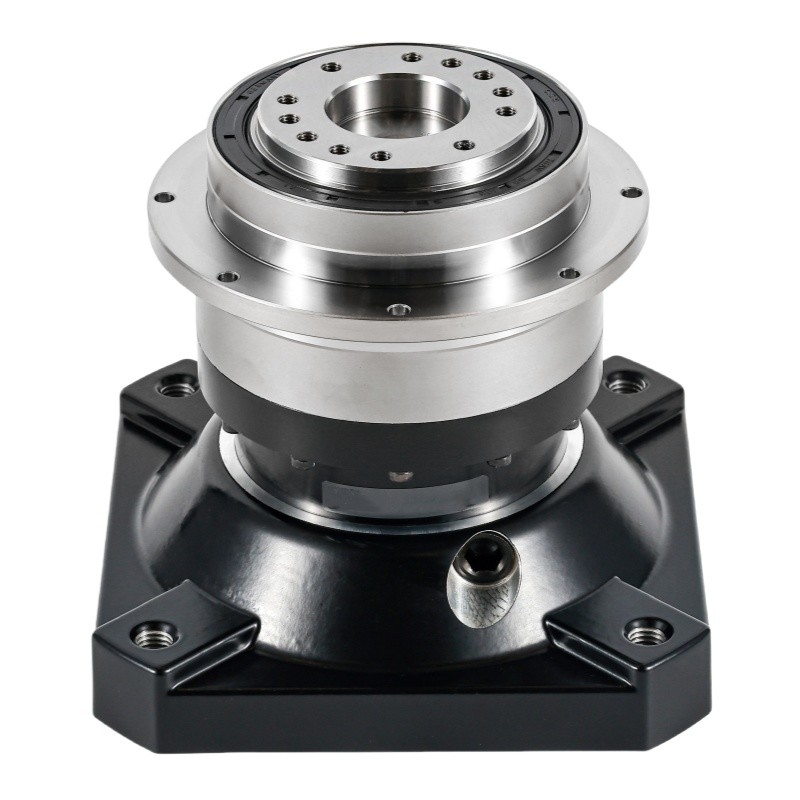

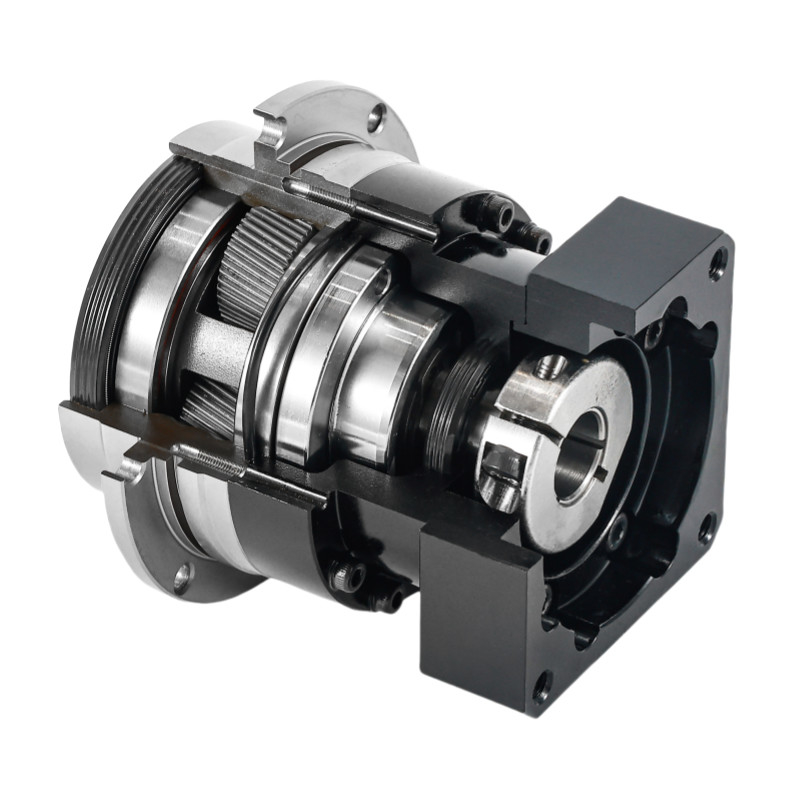

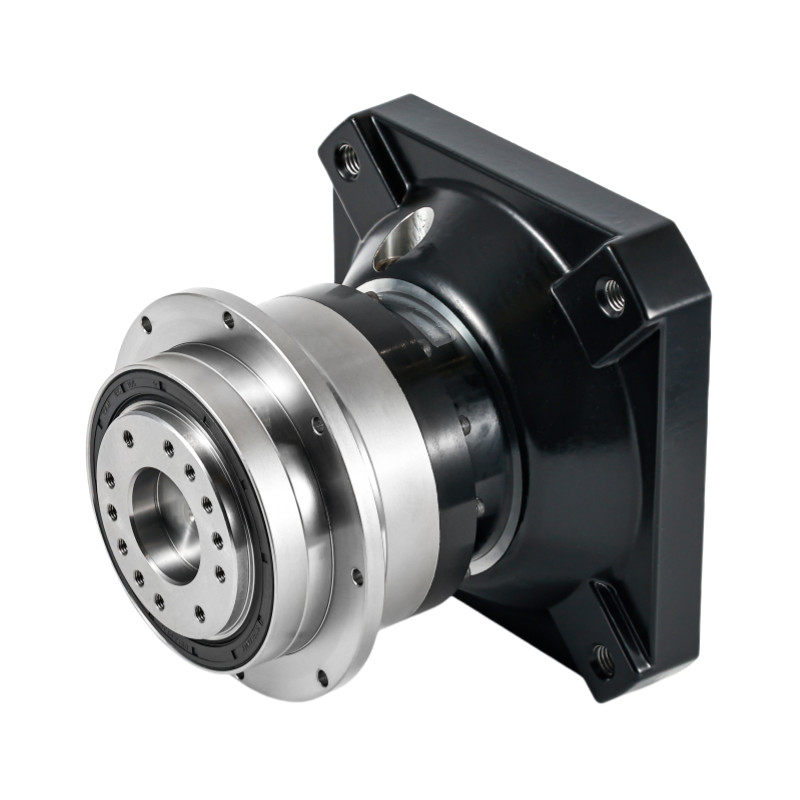

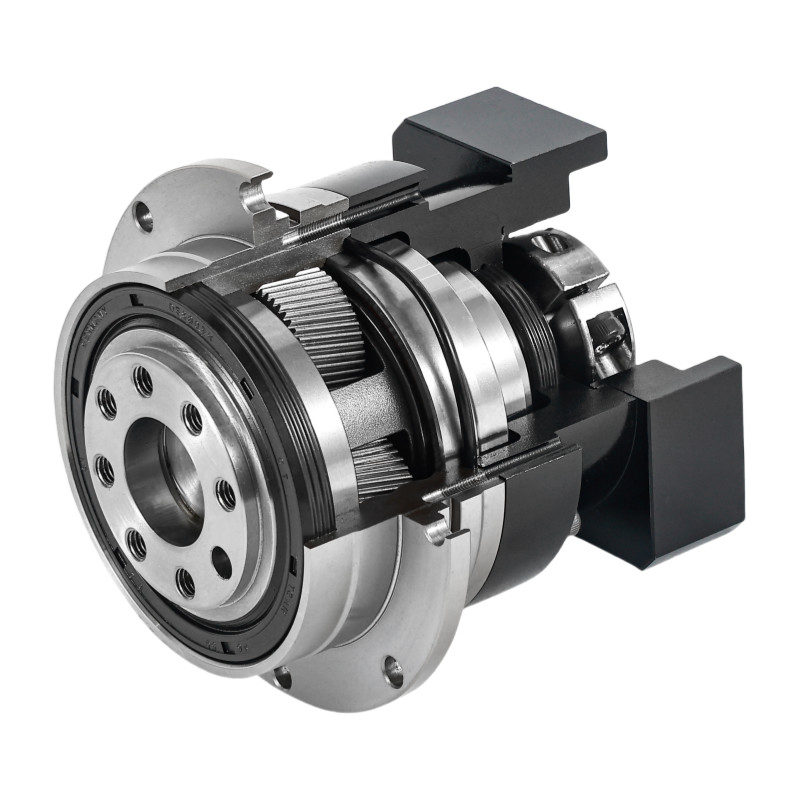

Przekładnie planetarne serii ND
| Specyfikacja | Numer segmentu | Wskaźnik | ND047 | NDS064 | ND064 | NDS090 | ND090 | NDV110 | NDV140 | NDV200 | NDV255 | NDV285 | |
| Narysowany moment wyjściowy | Nm | pojedynczy | 4 | 22 | 45 | 45 | 110 | 130 | 280 | 560 | 1100 | 2200 | 3600 |
| 5 | 25 | 55 | 55 | 145 | 160 | 340 | 610 | 1300 | 2200 | 3300 | |||
| 7 | 20 | 48 | 48 | 125 | 130 | 300 | 560 | 1200 | 2000 | 2900 | |||
| 8 | / | / | / | 95 | 100 | 250 | 550 | 1100 | 1700 | 2850 | |||
| 10 | 15 | 40 | 40 | 95 | 100 | 220 | 460 | 950 | 1400 | 1900 | |||
| podwójne | 16 | 22 | 45 | 45 | 110 | 130 | 280 | 560 | 1100 | 2200 | 3600 | ||
| 20 | 22 | 45 | 45 | 110 | 130 | 280 | 560 | 1100 | 2000 | 3600 | |||
| 25 | 25 | 60 | 60 | 145 | 160 | 350 | 610 | 1300 | 2200 | 3300 | |||
| 30 | / | / | / | / | / | / | / | / | / | 3100 | |||
| 35 | 20 | 50 | 50 | 125 | 140 | 310 | 560 | 1200 | 1200 | 3000 | |||
| 40 | 18 | 50 | 50 | 110 | 120 | 280 | 560 | 1200 | 1800 | / | |||
| 50 | 18 | 55 | 55 | 145 | 160 | 340 | 610 | 1300 | 2000 | 3300 | |||
| 60 | / | / | 48 | 125 | 120 | 300 | 560 | 1200 | 1800 | 2900 | |||
| 70 | 18 | / | 48 | 125 | 120 | 300 | 560 | 1100 | 1800 | 2900 | |||
| 80 | / | / | / | 95 | 100 | / | / | / | / | / | |||
| 90 | / | / | 40 | 95 | 100 | 250 | 460 | 950 | 1500 | 2200 | |||
| 100 | 15 | / | 40 | 95 | 100 | 220 | 460 | 950 | 1400 | 1900 | |||
| Inercja obrotowa | Kg.cm3 | pojedynczy | 4 | 0.03 | 0.14 | 0.14 | 0.14 | 0.51 | 2.87 | 7.54 | 25.03 | 54.37 | 283.94 |
| 5 | 0.03 | 0.13 | 0.13 | 0.13 | 0.47 | 2.71 | 7.42 | 23.29 | 53.27 | 264.41 | |||
| 7 | 0.03 | 0.13 | 0.13 | 0.13 | 0.45 | 2.62 | 7.14 | 22.48 | 50.97 | 250.11 | |||
| 8 | / | / | / | / | 0.45 | 2.62 | 7.14 | 22.48 | 50.84 | 245.35 | |||
| 10 | 0.03 | 0.13 | 0.13 | 0.13 | 0.44 | 2.57 | 7.03 | 22.51 | 50.56 | 241.30 | |||
| podwójne | 16 | 0.03 | 0.03 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | 25.03 | 54.37 | ||
| 20 | 0.03 | 0.03 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | 25.03 | 54.37 | |||
| 25 | 0.03 | 0.03 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | 25.03 | 54.37 | |||
| 30 | / | / | / | / | / | / | / | / | / | 54.37 | |||
| 35 | 0.03 | 0.03 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | 25.03 | 54.37 | |||
| 40 | 0.03 | 0.03 | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | 25.03 | / | |||
| 50 | 0.03 | 0.03 | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | 25.03 | 54.37 | |||
| 60 | / | / | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | 22.48 | 50.56 | |||
| 70 | 0.03 | / | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | 22.48 | 50.56 | |||
| 80 | / | / | / | / | 0.13 | / | / | / | / | / | |||
| 90 | / | / | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | 22.48 | 50.56 | |||
| 100 | 0.03 | / | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | 22.48 | 50.56 | |||
| Tabela parametrów | Numer segmentu | Wskaźnik | ND047 | NDS064 | ND064 | NDS090 | ND090 | NDV110 | NDV140 | NDV200 | NDV255 | NDV285 | |
| Maksymalny moment przyspieszenia | Nm | 1,2 | 10,8 razy znamionowy moment obrotowy | ||||||||||
| Moment awaryjnego zatrzymania | Nm | 1,2 | 3 razy znamionowy moment obrotowy | ||||||||||
| Nominalna prędkość wejścia | rmp | 1 | 4 ~ 10 | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 3000 | 3000 | 2200 | 2000 |
| 2 | 16 ~ 100 | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 3000 | 3000 | 3000 | 2200 | ||
| Maksymalna prędkość wejścia | rmp | 1 | 4 ~ 10 | 10000 | 10000 | 10000 | 8000 | 8000 | 8000 | 6000 | 6000 | 4000 | 3500 |
| 2 | 16 ~ 100 | 10000 | 10000 | 10000 | 8000 | 8000 | 8000 | 6000 | 6000 | 4000 | 3500 | ||
| Ultraprecyzyjna reakcja. | arcmin | 1 | 4 ~ 10 | / | / | / | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 |
| 2 | 16 ~ 100 | / | / | / | / | / | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ||
| Dokładna reakcja | arcmin | 1 | 4 ~ 10 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 |
| 2 | 16 ~ 100 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ||
| Standardowa reakcja | arcmin | 1 | 4 ~ 10 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 |
| 2 | 16 ~ 100 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ||
| Sztywność orzonalna | Nm/arcmin | 1,2 | 4 ~ 100 | 7 | 10 | 13 | 23 | 31 | 95 | 183 | 529 | 1030 | 1421 |
| Maksymalna siła promieniowa | N | 1,2 | 4 ~ 100 | 1040 | 1700 | 2300 | 3800 | 4100 | 9400 | 15000 | 25600 | 42000 | 58000 |
| Maksymalna siła osiowa | N | 1,2 | 4 ~ 100 | 690 | 850 | 1055 | 1900 | 2980 | 5600 | 9300 | 19000 | 33400 | 59000 |
| Moment nachylenia | Nm | 1,2 | 4 ~ 100 | 55 | 65 | 94 | 106 | 198 | 482 | 1090 | 4030 | 6100 | 8500 |
| Życie w służbie | H.R. | 1,2 | 16 ~ 100 | 20000h ((kontynuacja 10000h) | |||||||||
| Efektywność | % | 1 | 4 ~ 10 | ≥97% | |||||||||
| % | 2 | 16 ~ 100 | ≥ 94% | ||||||||||
| Waga | kg | 1 | 4 ~ 10 | 0.7 | 1.2 | 1.2 | 1.2 | 3.0 | 5.6 | 11.9 | 31.6 | 56.1 | 99.6 |
| kg | 2 | 16 ~ 100 | 1.0 | 1.6 | 1.6 | 1.6 | 3.7 | 7.3 | 15.9 | 36.9 | 70.0 | 124.5 | |
| Temperatura pracy | °C | 1,2 | 4 ~ 100 | -30°C-90°C | |||||||||
| Zmiany węgla | 1,2 | 4 ~ 100 | Tłuszcz syntetyczny | ||||||||||
| Klasa ochrony | 1,2 | 4 ~ 100 | IP65 | ||||||||||
| Pozycja montażu | 1,2 | 4 ~ 100 | Każdy kierunek. | ||||||||||
| Poziom hałasu (N1 = 3000 obr./min, bez obciążenia) | dB ((A) | 1 | 4 ~ 100 | ≤ 56 | ≤ 58 | ≤ 58 | ≤ 58 | ≤ 60 | ≤ 63 | ≤ 65 | ≤ 67 | ≤ 70 | ≤ 73 |
| 2 | 16 ~ 100 | ≤ 56 | ≤ 58 | ≤ 58 | ≤ 58 | ≤ 60 | ≤ 63 | ≤ 65 | ≤ 67 | ≤ 70 | ≤ 73 | ||
