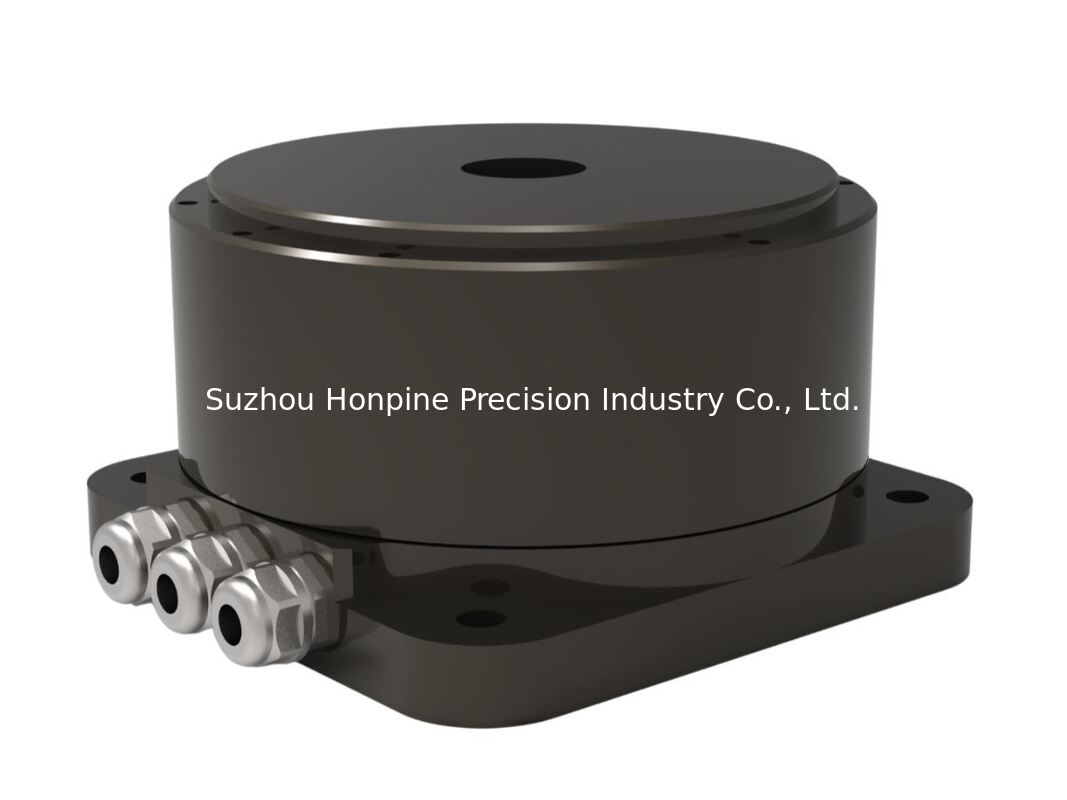

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Description of HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

TDB-170-095-NH-A Direct Drive Torque Motor adopts an outer rotor design, which structurally makes it easier to achieve higher moment of inertia and a larger output radius. It comes with Hall sensors for easier startup and better compatibility with a wide range of drives. Equipped with an incremental encoder, it is suitable for most servo control systems. With a positioning accuracy of ±20 arc seconds and repeatability of ±1.5 arc seconds, it meets the requirements of precision machining and inspection. It is widely used in applications such as CNC rotary tables, semiconductor equipment, robotic joints, and precision inspection.

Specification of HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Introduction of HONPINE Direct Drive Torque Motor Factory

HONPINE specializes in the R&D and manufacturing of direct drive torque motors, having established a 5,000-square-meter facility dedicated to the development, production, and administration of its direct drive motor product lines. The facility is equipped with a comprehensive array of advanced machinery, including dynamometers, fully automated winding machines, CNC machining centers, laser interferometers, automated potting machines, and salt spray test chambers. Furthermore, the company has established sales and after-sales service centers in Singapore, Suzhou, and Shenzhen. To support the localization of semiconductor equipment manufacturing, the company commissioned a precision assembly cleanroom and an R&D laboratory in 2024. HONPINE has successfully obtained quality certifications such as ISO9001 and CE, and its independently developed products have been awarded dozens of patents for both inventions and utility models.
